TS-1102N

信息图片

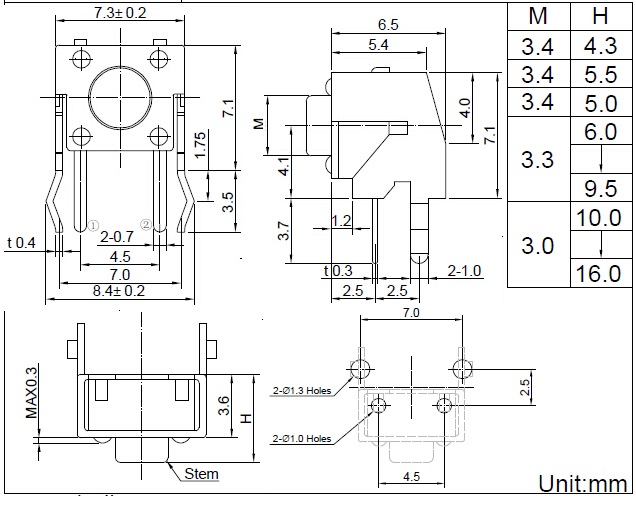

外形尺寸:6.0mm*6.0mm*4.3-9.0mm
参数配置 :
1. Rating : 50mA, 12V DC
2. Contact Resistance : 1Ω max.
3. Insulation Resistance : 100MΩ min. 100V DC
4. Withstanding Voltage : 250V AC (for one minute)
5. Circuit : SPST
6. Operating Force : 2.2±0.6N
1.6±0.6N
7. Stroke : 0.25mm
8. Operating Life : 100,000 cycles
9. Operating Temperature Range : –30˚C to +70˚C
