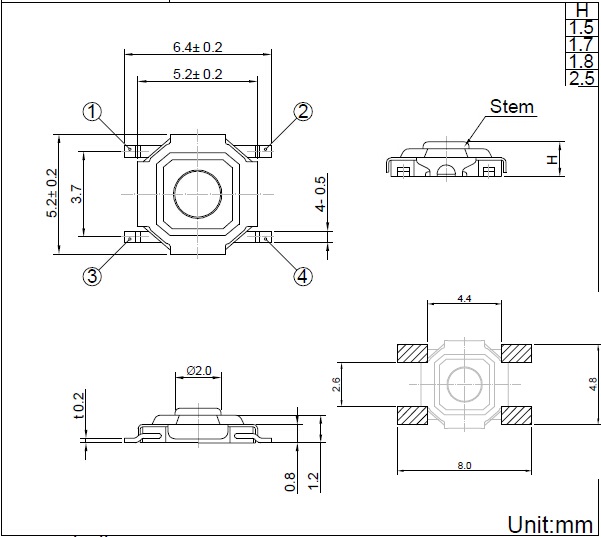

| 外形尺寸：5.0mm*5.0mm*1.5mm |
| 参数配置 ：拨柄高度0.3mm (SMT) |
1. Rating : 50mA, 12V DC
2. Contact Resistance : 1Ω max.
3. Insulation Resistance : 100MΩ min. 100V DC
4. Withstanding Voltage : 250V AC (for one minute)
5. Circuit : SPST
6. Operating Force : 2.2±0.6N (JPM1990-62 1F)
1.6±0.6N (JPM1990-66 1F)
7. Stroke : 0.25mm
8. Operating Life : 100,000 cycles
9. Operating Temperature Range : –30˚C to +70˚C |
|
|
